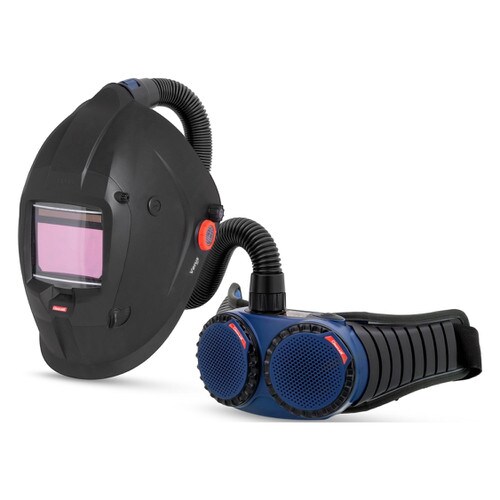

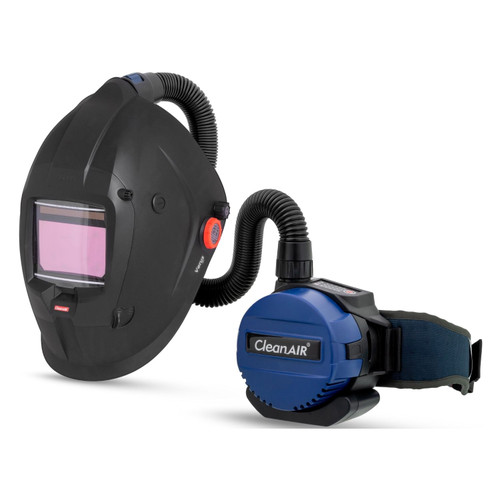

CleanAIR Verus Welding Helmet & AerGO PAPR Kit

WELDING HELMET FEATURES

• Superb optics for a better view
• Ten available dark shades for various welding jobs
• The delay function allows the user to set the switching time from dark to light
• A wide range of sensitivity settings allow the welder to adapt the ADF to all welding processes
• Four sensors for stable arc detection
• Smart power control – auto ON, auto OFF (after 30 min if not in use)
• Magnifying lens can be easily attached to the ADF
• Meeting the highest requirements according to EN 379 for eye protection of welders

For more individual comfort you can regulate the airflow in three zones:

Zone 1 – control lever, accessible from outside the helmet, controls the direction of the air coming from the lower part of the airduct.
Zone 2 – control knob, accessible from outside the helmet, controls the air coming from the upper part of the airduct.
Zone 3 – the two sliders on the inside of the the helmet control the intensity of the airflow coming either towards welder’s mouth or from the sides.

HELMET TECHNICAL SPECIFICATIONS

• Weight: 793g
• Material: Polyamide (PA)
• Hose Connection: QuickLOCK™
• Certification: NPF Respiratrory Protection - Powered air purifying respirators - EN 12941, TH3 / NPF 500, and airline sytems (supplied air) - EN 14594 (3B) / NPF 200
• Certification: Eye & Face Protection - Welding helmet - EN 175 B, Welding filter - EN 379 (1/1/1/1)
• ADF Dimensions: 110x90x7mm
• Viewing Area: 98 x 62mm
• Shade Range: Dark state variable 5-8 / 9-14, and light state 3
• Switching Time: 0.00015s (0.15ms) - light to dark, and 0.1-0.9s (adjustable) - dark to light

AERGO PAPR FEATURES

• Lightweight and ergonomic
• Slim profile of the unit - only 65 mm
• Versatile in use - filtration of particulates as well as gases/vapours
• Simple one-button operation with a new clear display
• Built-in barometric sensor with automatic adjustment of air flow depending on altitude
• Adjustable airflow at four levels: 160/175/190 and 210lpm
• Flow Control system maintains constant airflow regardless of the the level of filter clogging or battery charge
• Operation time up to 20 hours with Heavy Duty battery, or up to 10 hours with standard battery
• Short battery recharging time < 3 hours (standard battery)
• Audio, visual and vibrating alarm indicating a low airflow or a low battery charge
• Unique filter design ensures the perfect seal by every filter change
• Ideal for use with Maxisafe RPG540 AIR HOOD FACE SHIELD

AERGO PAPR APPLICATIONS

• Dusty Industrial Environments
• Automotive Industry
• Shipbuilding Industry
• Welding
• Grinding
• Surface Finishing
• Building Industry
• Agriculture

AERGO PAPR SPECIFICATIONS

• Weight: 980 g (including standard battery)
• Dimension: 235x126x65 mm
• Airflow: 160/175/190/210 lpm
• Alarm: audio, visual and vibrating
• Operation* / charging time: < 10 / < 3 h standard battery, < 20 / < 5,5 h Heavy Duty battery
• Battery Li-Ion: 14,4 V / 2,6 Ah (standard), Li-Ion 14,4 V / 5,2 Ah (Heavy Duty)
• Hose connection: CA40x1/7inch
• Certification: Certified to AS/NZS 1716:2012 for Respiratory protective devices EN 12941 TH3
